products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
RV MPPT Solar Charge Controller
Created with Pixso.

100V MPPT Solar Charge Controller with Multiple Protection and LCD Display for RV Solar Systems

Name

100V MPPT Solar Charge Controller with Multiple Protection and LCD Display for RV Solar Systems

Brand Name: Melin Sunergy
Model Number: MT518-30A
MOQ: 100
Payment Terms: T/T,Western Union,L/C
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE ,FCC ,UKCA
Color:
Black
MPPT Tracking Efficiency:
99.5%
Weight:
1090g
Maximum Input Voltage:
100V
RV-C:
Optional
Ip Level:
IP43
BMS Wake Up:
Yes
Maximum Current:
30A
Max. Solar Power Input:
440W For 12V System ,880W For 24V System
Packaging Details:
brown box + our carton
Highlight:

IP43 MPPT Charge Regulator

,

30A MPPT Charge Regulator

,

100V MPPT Charge Regulator

Product Description
30A MPPT Charge Regulator IP43 Solar Panel Charge Controller BMS Wake Up for LiFePO4 Batteries 100V
Premium RV Solar Charge Controller
This state-of-the-art MPPT solar charge controller is designed for efficient solar power management in RVs and off-grid systems. With its sleek black design, it combines advanced functionality with aesthetic appeal for your solar setup.
Key Features
  • Max 880W solar power input (24V system) / 440W (12V system)
  • Compatible with 9 battery types including AGM, GEL, LiFePO4, and LTO
  • 2-year warranty for guaranteed reliability
  • Compact dimensions: 195×130×70mm for space-efficient installation
  • Comprehensive protection: overcharge, over-discharge, short circuit, and reverse polarity
  • Intuitive LCD + LED display for easy monitoring
  • True MPPT with 99.5% tracking efficiency
  • Smart 5-stage charging technology
  • BMS wake-up function for lithium batteries
  • Built-in Bluetooth connectivity
Technical Specifications
Product Type Intelligent MPPT solar controller
Rated Current 30A
Maximum Input Voltage 100V Voc
Charging Conversion Efficiency 98%
System Voltage 12V/24V Auto working
IP Rating IP43
Weight 1090g
Work Temperature -25°C to +50°C
Applications
Ideal for recreational vehicles (RVs), marine applications, remote cabins, and off-grid solar systems. Certified with CE, FCC, and UKCA standards for international compliance.

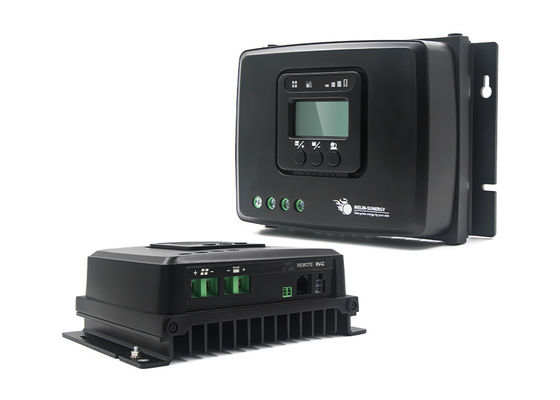

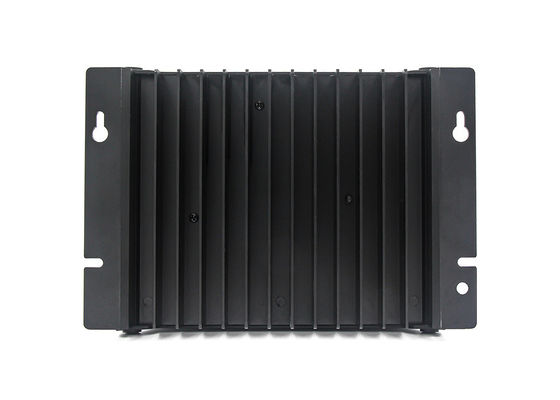

Product Image
100V MPPT Solar Charge Controller with Multiple Protection and LCD Display for RV Solar Systems 0
Support & Services
Includes 2-year warranty, technical support for installation and troubleshooting, and guidance for optimal system performance. Regular maintenance recommended for sustained efficiency.
Customization Options
OEM and ODM services available. Brand: Melin Sunergy, Model: MT518-30A. Minimum order quantity: 100 units.
