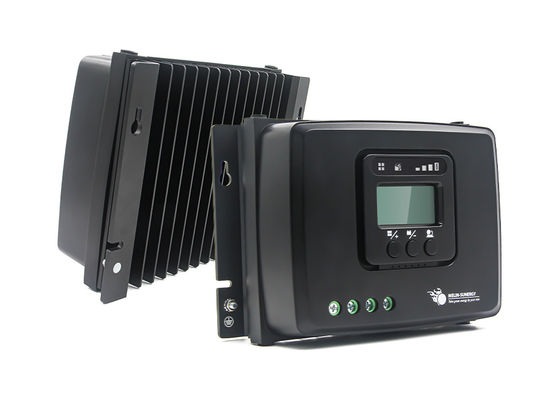

30A IP43 MPPT Solar Charge Controller with Temperature Compensation and Optional RV-C Port for Lithium Battery

Brand Name:	Melin Sunergy
Model Number:	MT518-30A
MOQ:	100
Payment Terms:	T/T,Western Union,L/C
Supply Ability:	5000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE ,FCC ,UKCA

MPPT Tracking Efficiency:

99.5%

Maximum Input Voltage:

100V

Temperature Compensation:

Yes

Dimension:

195*130*70(mm)

Ip Level:

IP43

RV-C:

Optional

Color:

Black

Work Temperature:

-25~+50 Degree

Battery Type:

9 Types Of Battery

Bluetooth:

Built In

Packaging Details:

brown box + our carton

Supply Ability:

5000pcs per month

Highlight:

IP43 Intelligent Solar Charge Controller

MPPT 100V Solar Charge Controller

30A Solar Charge Controller For Lithium Battery

Product Description

30A IP43 MPPT Intelligent 100V Solar Charge Controller For Lithium Battery

Advanced Solar Energy Management

The MT518 30A MPPT RV Solar Charge Controller is a high-quality solar energy controller designed to efficiently manage solar electricity for recreational vehicles. With advanced features and robust construction, it ensures safe and efficient battery charging.

Key Features

True MPPT Technology: 99.5% tracking efficiency maximizes solar system performance
Temperature Compensation: Adjusts charging rate based on ambient temperature for battery longevity
Compact Design: Lightweight (1090g) yet durable for easy RV installation
Built-in Bluetooth: Monitor and control via smartphone app without additional dongle
Optional RV-C Port: Seamless integration with RV-C protocol devices

Technical Specifications

Product Type	Intelligent MPPT solar controller
Rated Current	30A
Maximum PV Power	440W @ 12V system, 880W @24V system
System Voltage	12V/24V Auto working
Maximum Input Voltage	100V Voc
MPPT Tracking Efficiency	99.5%
Charging Conversion Efficiency	98%
Battery Compatibility	Lead Acid (AGM, GEL, WET, Calcium, Lead Crystal) and Lithium (LiFePO4, LTO, LCO)
Display	LCD + LED display
IP Rating	IP43
Dimensions	195×130×70mm
Weight	1090g
Warranty	2 Years

Protection Features

Overcharging Protection
Undercharging Protection
Short Circuit Protection
Reverse Polarity Protection

Applications

Ideal for RV solar systems and mobile applications, this CE/FCC/UKCA certified controller features a 5-stage charging process (Soft Start, Bulk, Absorption, Float, Equalization) for optimal battery health. The user-friendly LCD display provides real-time system monitoring.

Customization Options

OEM labeling and manual customization
Product color variations
Special battery type configurations
Custom charging curves
ODM design services for special requirements

Support & Services

Comprehensive user manual included
Installation assistance available
Technical support for troubleshooting
2-year warranty coverage
Regular firmware updates for enhanced functionality
