RV MPPT Solar Charge Controller
Created with Pixso.

20A 12V/24V 5 Stage Charging MPPT Solar Charge Controller for RV and Lithium Battery

Name

20A 12V/24V 5 Stage Charging MPPT Solar Charge Controller for RV and Lithium Battery

Brand Name: Melin Sunergy
Model Number: MT518
MOQ: 100
Price: 46.00
Payment Terms: L/C,T/T,Western Union
Supply Ability: 10000pcs per month
Detail Information
Product Description
Detail Information
Place of Origin:
China
MPPT Tracking Efficiency:
99.5%
Dimension:
180*110*70(mm)
Charging Stage:
5 Stage
Temperature Compensation:
Yes
Display:
LCD Display
Maximum Current:
20A
Bluetooth:
Yes
Mounting:
Surface Mount
Packaging Details:
Color box
Supply Ability:
10000pcs per month
Highlight:

12V Motorhome Solar Charge Controller

,

24V Motorhome Solar Charge Controller

,

MPPT 20A Solar Charge Controller Intelligent

Product Description
MPPT 20A 12V/24V Motorhome Solar Charge Controller for Lithium Battery
The MT518 RV Solar Charge Controller is a digital, efficient off-grid solar controller designed for RVs, motorhomes, and other off-grid applications. It optimizes the charging process of your RV's batteries, ensuring reliable power for your adventures.
Product Overview
This solar charge controller is compatible with various battery types including AGM, GEL, WET, Calcium, LiFePO4, LTO, and Li-ion, providing flexibility for different RV battery setups.
Key Features
  • True MPPT technology with >99.5% tracking efficiency

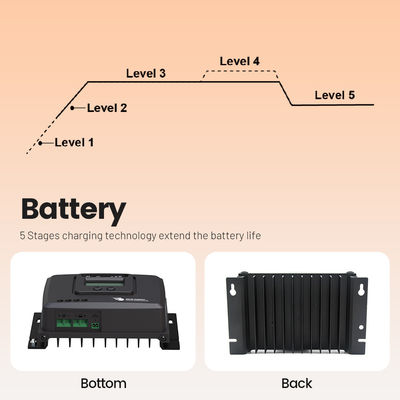

  • 5-stage charging technology extends battery life
  • Supports 7 battery types
  • Real-time LCD + LED display
  • Lithium battery BMS wake-up function
  • Built-in Bluetooth (no external dongle needed)
Technical Specifications
Product Name RV MPPT Solar Panel Charge Regulator
Product Type Intelligent MPPT solar controller
Charging Stage 5 Stage
Rated Current 20A
Maximum Input PV Power 280W @ 12V system, 560W @24V system
System Voltage 12V/24V Auto working
Maximum Input Voltage 100V Voc
MPPT Tracking Efficiency 99.5%
Charging Conversion Efficiency 98%
Suitable Battery Types Lead Acid: AGM, GEL, WET, Calcium
Lithium: LiFePO4, LTO, LCO
Display LCD + Fashion LED display
BMS Wake Up Yes
Bluetooth Included
IP Level IP43
Size 180×110×70mm
Weight 680g
Warranty 2 Years
Applications
RV Solar System: Ideal for RVs with multiple batteries, ensuring maximum solar panel efficiency even in low light conditions.
Caravan Solar Charge Regulator: Increases charging efficiency by up to 30% for faster battery charging during trips.
Boat Solar System: IP43 splash-proof design with built-in Bluetooth for easy monitoring on boats.
Off-Grid Living: Perfect for holiday homes without grid power, maintaining battery life in solar systems.
Packaging and Shipping
The controller is packaged in a sturdy cardboard box with all accessories and manuals included. For international shipments, the box is packed in a strong carton.
Sample orders are shipped via reliable courier services with tracking numbers provided. Delivery typically takes 7-10 business days. Bulk orders are shipped by air or sea with pallet packing for protection.
Frequently Asked Questions
Q: What is the brand name of this product?
A: The brand name is Melin Sunergy. We also provide OEM service.
Q: What is the model number?
A: The model number is MT518.
Q: Where is this product manufactured?
A: This product is manufactured in China.
Q: What is the maximum input voltage?
A: The maximum input voltage is 100V.
Q: Does this product come with a warranty?
A: Yes, it comes with a 2-year warranty.
