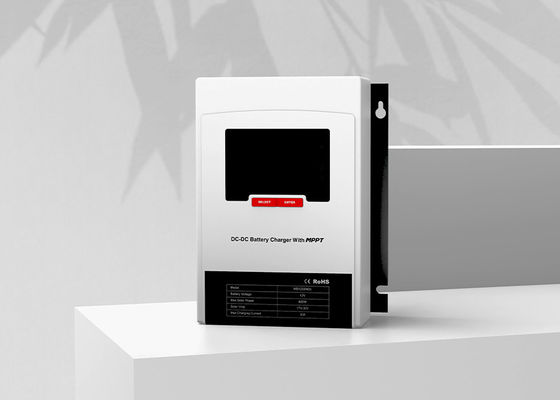

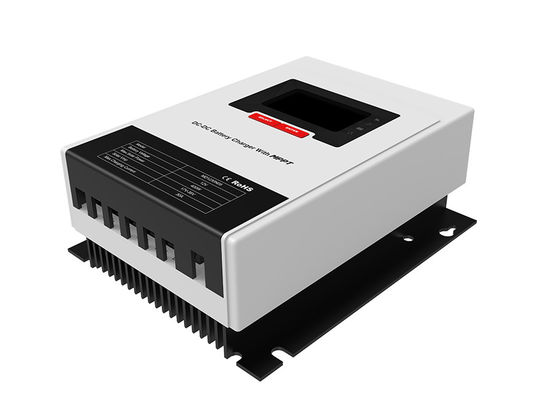

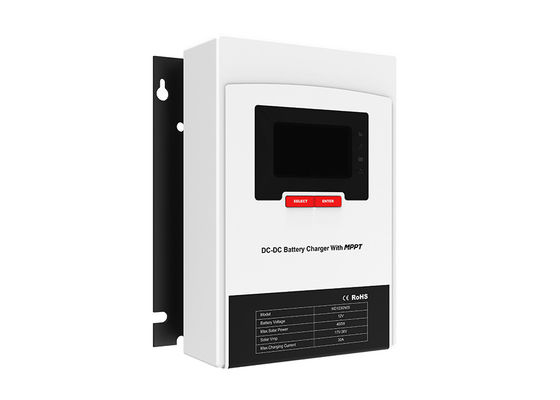

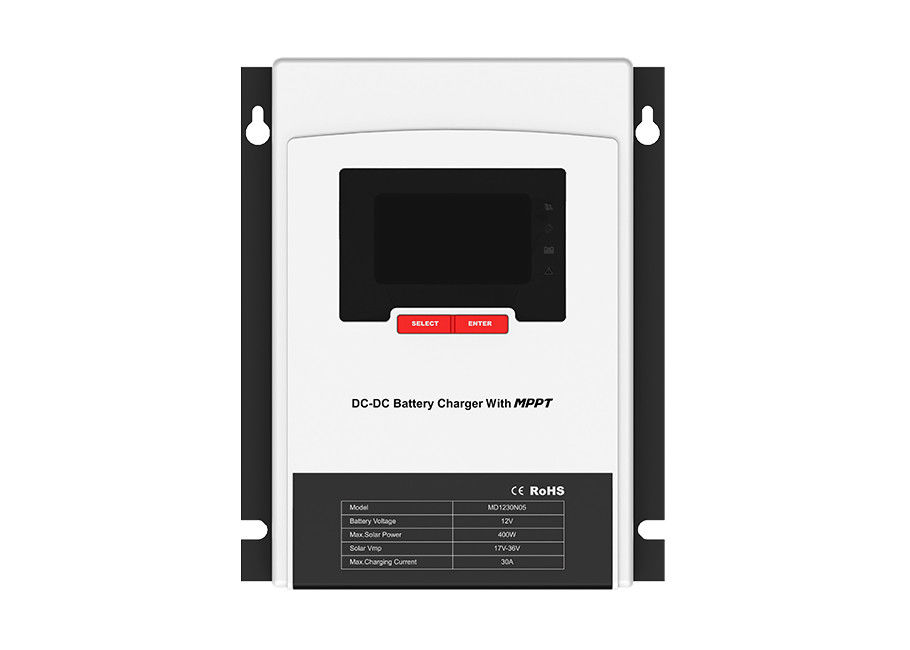

MD1230 12V DC DC Charger For RV Battery Charging And Maintenance

MD1230 12V DC DC Charger For RV Battery Charging And Maintenance

Brand Name: Melin Sunergy
Model Number: MD1230
MOQ: 100
Price: USD126.00
Payment Terms: Western Union, T/T, L/C
Supply Ability: 5000pcs per month
Detail Information
Place of Origin:
China
Certification:
CE-LVD ,CE-EMC
Rated Current:
30A
Solar Controller:
MPPT
Display:
Large LCD Display
2nd Battery Type:
Lead Acid And Lithium Battery
Starter Battery Type:
Lead Acid Battery
Rated Battery Voltage:
12V
Max. PV Input Voltage:
55V Voc
Max. PV Input Power:
400W
Size:
221X176X93mm
Weight:
1.9Kgs
Warranty:
3 Years
Packaging Details:
Color Box
Supply Ability:
5000pcs per month
Highlight:

12V DC DC Charger

,

RV 12V DC DC Charger

Product Description

MD1230 DC DC Charger The Perfect Solution For RV Battery Charging And Maintenance



【Introduction】



MD1230 DC DC Charger main suitable used in RV system , it can let the engine to charge the 2nd battery when running , meanwhile it also can let the solar panel to charge the 2nd battery and starter battery . When engine not work , it can use the PV panel to charge both the 2nd and starter battery to maintain the battery with longer life .



【How it works to charge and main the starter battery and second battery with longer life】


MD1230 12V DC DC Charger For RV Battery Charging And Maintenance 0






【4 types of working method , suitable for different using enviornment】



MD1230 12V DC DC Charger For RV Battery Charging And Maintenance 1



【Charging process when engine runs】

MD1230 12V DC DC Charger For RV Battery Charging And Maintenance 2







【Charging process when engine stops】

MD1230 12V DC DC Charger For RV Battery Charging And Maintenance 3

【When no PV input & engine not work , the second battery to maintain starter battery】

MD1230 12V DC DC Charger For RV Battery Charging And Maintenance 4
