IP32 Waterproof 24months Warranty 99.5% MPP Tracking Efficiency RV MPPT Solar Charge Controller

Name: IP32 Waterproof 24months Warranty 99.5% MPP Tracking Efficiency RV MPPT Solar Charge Controller
Brand: Shenzhen Melin Sunergy Co., Ltd.
SKU: MT518
Price: 90.00 USD
Availability: InStock

Brand Name:	Melin Sunergy
Model Number:	MT518
MOQ:	100
Price:	USD86~USD95 per piece
Payment Terms:	Western Union,T/T,L/C
Supply Ability:	5000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE-LVD ,CE-EMC

Technical Type:

MPPT

Efficiency:

99.5%

Display:

Large LCD Display

Waterproof:

IP32

Warranty:

24months

System Voltage:

12V/24V Auto

Size:

195 X 130 X 70mm

Weight:

1.09Kgs

Packaging Details:

Color Box

Supply Ability:

5000pcs per month

Highlight:

30A MPPT Solar Charge Controller

RV MPPT Solar Charge Controller

12V MPPT Solar Charge Controller

Product Description

30A 12V 24V High Efficiency MPPT Solar Charge Controller for RV

Melin Sunergy's RV Solar Charge Controller, model MT518-30A, is a high-quality charge controller designed specifically for off-grid solar power systems in RVs. Made in China, it is CE, FCC, and UKCA certified, ensuring its safety and quality. With a minimum order quantity of just 100 units, it is the perfect solution for RV owners who want to upgrade their power system.

Latest MPPT Algorithm

The MT518-30A MPPT controller features advanced MPPT algorithm with 99.5% MPP tracking efficiency, ensuring your solar system always operates at peak power to maximize electricity production and battery storage.

Built-in Bluetooth - No Dongle Required

With built-in Bluetooth, this charge controller enables smartphone monitoring and management of your solar system. The dedicated app provides real-time updates on solar panel status, battery levels, and charging progress, with remote adjustment capability for ultimate convenience.

Lightweight and Compact Design

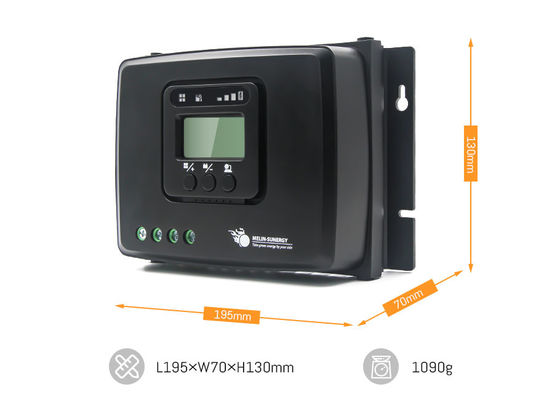

Weighing just 1090g (195×130×70mm), this controller is easy to install and transport, mounting conveniently on RV walls or other surfaces without adding significant weight or space requirements.

System Voltage Compatibility

Compatible with both 12V and 24V solar systems, this controller adapts to various RV types from small campervans to large motorhomes.

LCD Display for Easy Monitoring

The clear LCD display provides convenient monitoring and adjustment of charging status and parameters, ensuring efficient battery charging and power usage tracking.

Key Features

Compact case design
High MPPT tracking and charging efficiency
Negative ground design
9 battery type settings covering 99% of market options
5-stage charging technology extends battery life
LCD + digital LED display for clear charging status
Temperature compensation function
BMS wake up function for lithium batteries
Optional remote display, built-in Bluetooth and RV-C function
High quality with 24-month warranty

Technical Specifications

Item No.	MT518-30A
Rated Current	30A
Max. Solar Power Input	440W/12V, 880W/24V
MPPT Efficiency	>99.5%
Max. Solar Input Voltage	100V DC
Rated load current	30A
Battery Type	AGM, GEL, WET, Calcium, Lead Crystal, LTO, LCO, LFP, Customs
Normal input PV voltage at 25°C	92V
Max. PV input current	30A
Conversion efficiency	98%
IP Rating	IP43
MPP voltage range	15-72V
Size	195×130×70mm
Weight	1.09Kg
Operation Temperature	-25°C to 50°C (-13°F to 122°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
