products details

Home Products

40A MPPT Solar Charge Controller with 99% Efficiency IP32 Waterproof and 36months Warranty for 12V/24V Auto Systems

Name: 40A MPPT Solar Charge Controller with 99% Efficiency IP32 Waterproof and 36months Warranty for 12V/24V Auto Systems
Brand: Shenzhen Melin Sunergy Co., Ltd.
SKU: MT508
Price: 90.00 USD
Availability: InStock

Brand Name:	Melin Sunergy
Model Number:	MT508
MOQ:	100
Price:	USD86~USD95 per piece
Payment Terms:	Western Union,T/T,L/C
Supply Ability:	5000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE-LVD ,CE-EMC

Technical Type:

MPPT

Efficiency:

99%

Display:

Large LCD Display

Waterproof:

IP32

Warranty:

36months

System Voltage:

12V/24V Auto

Size:

260 X 216 X 83.2mm

Weight:

2.3Kgs

Packaging Details:

Color Box

Supply Ability:

5000pcs per month

Highlight:

24V MPPT Solar Charge Controller

12V MPPT Solar Charge Controller

Product Description

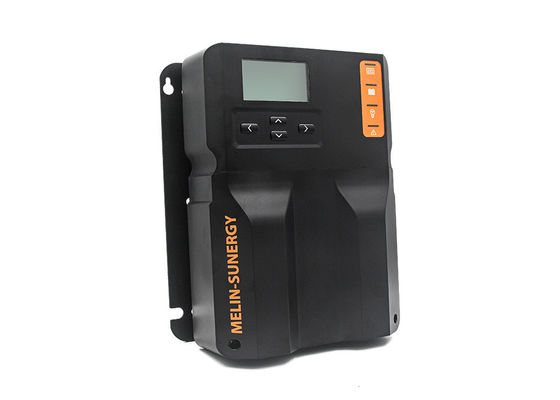

40A 12V 24V MPPT Solar Charge Controller With Max. 150V Input

The MT508-40A is a 40A MPPT solar charge controller designed for both lead acid and lithium batteries. With a maximum input voltage of 150V, it's suitable for various solar systems. Featuring comprehensive settings for loading mode, lighting, and timing control, this controller is ideal for diverse applications including home systems, RVs, and solar street lighting.

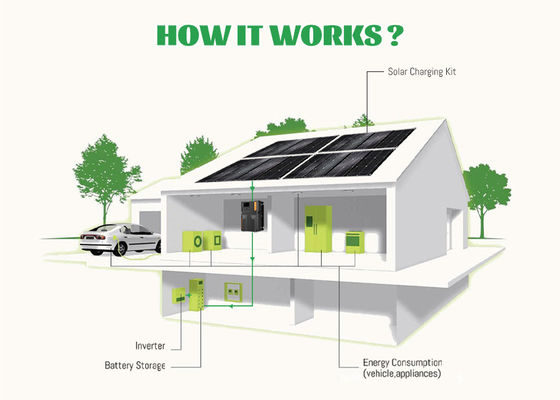

How It Works

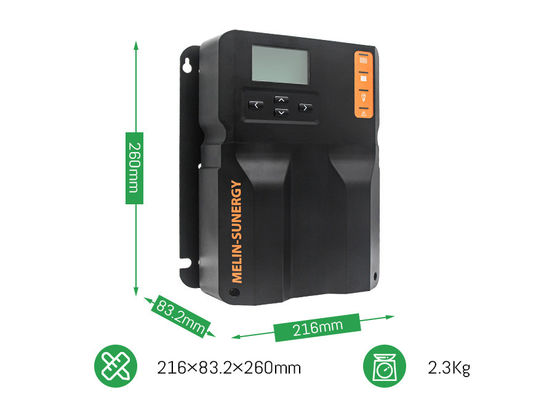

Size & Weight

Wiring Terminal and Display

Specifications

Item No.	MT508-40A
Rated Current	40A
Max. Solar Power Input	520W/12V, 1040W/24V
MPPT Efficiency	>99%
Max. Solar Input Voltage	150V DC
Rated Load Current	40A
Historical Data	Can store historical data of the past 300 days
Battery Type	USE/FLD/GEL/LI/SLD(Default)
Battery's Operating Voltage Range	8V-32V
Protection	Over Charge, Input & Output Reverse Polarity, Short Circuit, Over temperature
IP Rate	IP32
Mounting Method	Wall mount
Size	260×216×83.20mm
Weight	2.3Kg
Operation Temperature	-25~50℃/-13~122℉
Storage Temperature	-40~85℃/-40~185℉
