MPPT Solar Charge Controller
Created with Pixso.

40A 12V 24V MPPT Solar Charge Controller With Max. 150V Input

40A 12V 24V MPPT Solar Charge Controller With Max. 150V Input

Brand Name: Melin Sunergy
Model Number: MT508
MOQ: 100
Price: USD86~USD95 per piece
Payment Terms: Western Union, T/T, L/C
Supply Ability: 5000pcs per month
Detail Information
Place of Origin:
China
Certification:
CE-LVD ,CE-EMC
Technical Type:
MPPT
Efficiency:
99%
Display:
Large LCD Display
Waterproof:
IP32
Warranty:
36months
System Voltage:
12V/24V Auto
Size:
260 X 216 X 83.2mm
Weight:
2.3Kgs
Packaging Details:
Color Box
Supply Ability:
5000pcs per month
Highlight:

24V MPPT Solar Charge Controller

,

12V MPPT Solar Charge Controller

Product Description

40A 12V 24V MPPT Solar Charge Controller With Max. 150V Input



【Introduction】



MT508-40A is a 40A MPPT solar charge controller that can charge both lead acid and Lithium battery . With Max. 150V input

voltage can suitable for more different solar systems . With full setting for loading mode , lighting and timing control , the MT508

MPPT solar controller can suitable for many different using enviornment like home systems, RV , solar street light etc..



【How it works】

40A 12V 24V MPPT Solar Charge Controller With Max. 150V Input 0

40A 12V 24V MPPT Solar Charge Controller With Max. 150V Input 1

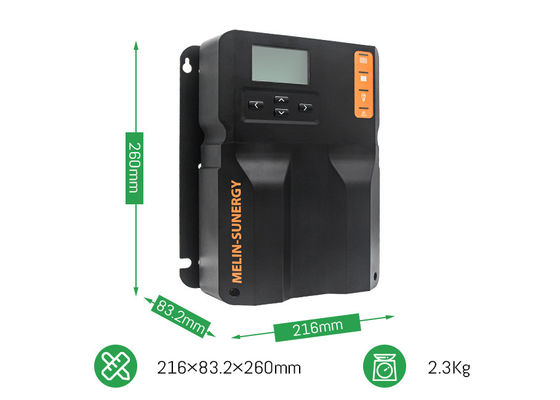

【Size & Weight 】

40A 12V 24V MPPT Solar Charge Controller With Max. 150V Input 2

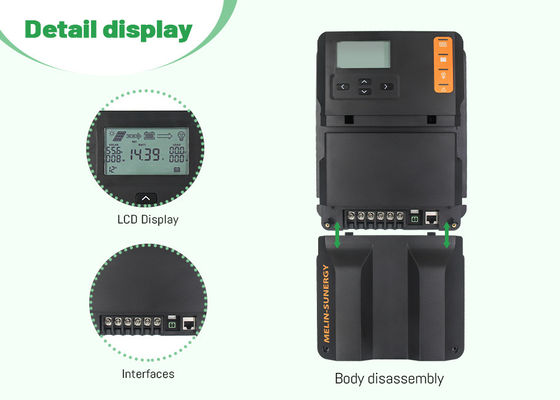

【Wiring terminal and Display】

40A 12V 24V MPPT Solar Charge Controller With Max. 150V Input 340A 12V 24V MPPT Solar Charge Controller With Max. 150V Input 4



【Specification 】

Item No. MT508-40A
Rated Current 40A
Max. Solar Power Input 520W/12V , 1040W/24V
MPPT Efficiency >99%
Max. Solar Input Voltage 150V DC
Rated load current 40A
Historical Data Can store historical data of the past 300 days
Battery Type USE/FLD/GEL/LI/SLD(Default)
Battery's operating voltage range 8V-32V
Protection  Over Charge , Input & Output Reverse Polarity , Short Circuit , Over temperature,
IP Rate IP32
Mounting method Wall mount
Size 260X216X83.20mm
Weight 2.3Kg
Operation Temperature -25~50℃/-13~122℉

Storage Temperature -40~85℃/-40~185℉
