60A 12V 24V IP65 Digital Solar Charge Controller with PWM and Remote Display

Name: 60A 12V 24V IP65 Digital Solar Charge Controller with PWM and Remote Display
Brand: Shenzhen Melin Sunergy Co., Ltd.
SKU: MT505
Price: 95.00 USD
Availability: InStock

Brand Name:	Melin Sunergy
Model Number:	MT505
MOQ:	100
Price:	USD85~USD105 per piece
Payment Terms:	Western Union,T/T,L/C
Supply Ability:	5000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE-LVD ,CE-EMC

Charging Technology:

5 Stage Charging

Batteries:

AGM/GEL/WET/Calcium /LTO/LiFePO4

Type:

PWM Controller

Application:

Portable Solar Panel For Charging Marine ,Boat, Caravan Battery

Feature:

Maintain Battery With Longer Life

Color:

Black

Size:

182X103X50mm

Weight:

980g

Warranty:

24 Months

Packaging Details:

Color Box

Supply Ability:

5000pcs per month

Highlight:

60A Digital Solar Charge Controller

Digital Solar Charge Controller 12V

PWM Solar Charge Controller 12V 24V

Product Description

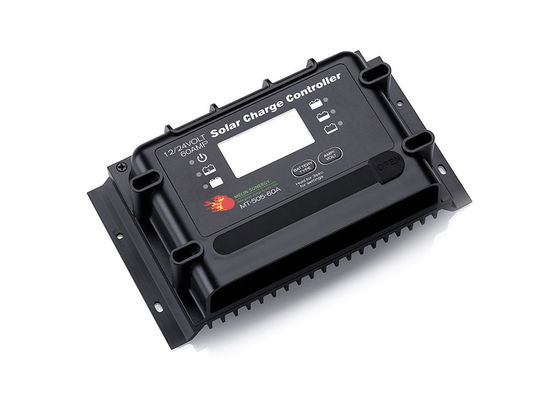

60A PWM Digital Solar Charge Controller 12V 24V With Remote Display

The MT505-60A PWM solar charge controller is a 12V/24V automatic controller with digital LCD display. It protects batteries from overcharging and prevents reverse current flow from battery to solar panels at night. Featuring 5-stage charging technology, it extends battery life and is compatible with AGM, Gel, WET, Calcium Lead acid batteries, as well as LTO & LiFePO4 lithium batteries for marine, boat, and caravan applications.

Key Features

Compatible Battery Types

AGM batteries
GEL batteries
WET batteries
Calcium Lead acid batteries
LTO lithium batteries
LiFePO4 lithium batteries

Compact Design

Lightweight design at only 980g with dimensions of 182*103*50mm for easy installation.

Technical Specifications

Item No.	MT505-60A
Rated Current	60A
Max. Solar Power Input	2280W
Nominal Solar Input Voltage	15~50V DC
Max. Solar Input Voltage	50V DC
Lowest Operation Voltage	9V DC
Charging Stage	5 Stage Charging (Soft Start-Bulk-Absorption-Equalization-Float)
Battery Type	6 Types (AGM, GEL, WET, Calcium, LTO & LiFePO4)
Min. Battery voltage	3V DC
Protection	Over Charge, Input & Output Reverse Polarity, Short Circuit, Over temperature
IP Rating	IP65
Mounting method	Wall mount
Size	18210350mm
Weight	980g
Operation Temperature	-25~50℃/-13~122℉
Storage Temperature	-40~85℃/-40~185℉

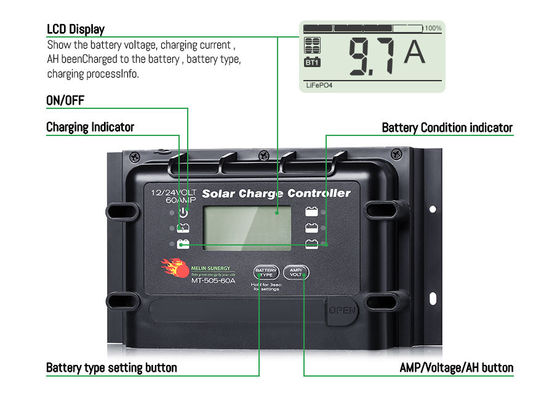

LCD + LED Display
