12V 10A Digital PWM Solar Charge Controller IP67 Waterproof with LCD Display for AGM/GEL/WET/Calcium/LTO/LiFePO4 Batteries

Name: 12V 10A Digital PWM Solar Charge Controller IP67 Waterproof with LCD Display for AGM/GEL/WET/Calcium/LTO/LiFePO4 Batteries
Brand: Shenzhen Melin Sunergy Co., Ltd.
SKU: MT515
Price: 14.00 USD
Availability: InStock

Brand Name:	Melin Sunergy
Model Number:	MT515
MOQ:	100
Price:	USD12~USD16 per piece
Payment Terms:	Western Union,T/T,L/C
Supply Ability:	5000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE-LVD ,CE-EMC

Charging Technology:

5 Stage Charging

Batteries:

AGM/GEL/WET/Calcium /LTO/LiFePO4

Type:

PWM Controller

Application:

Portable Solar Panel For Charging Marine ,Boat, Caravan Battery

Feature:

Maintain Battery With Longer Life

Color:

Black

Size:

130X102X35mm

Weight:

250g

Warranty:

24 Months

Packaging Details:

Color Box

Supply Ability:

5000pcs per month

Highlight:

12V 10A PWM Solar Charge Controller

10A PWM Solar Charge Controller IP67

Digital 12 Volt Solar Charge Controller

Product Description

Digital Smart 12 Volt 10A PWM Solar Charge Controller IP67 Waterproof

The MT515 is a 10A 12V digital PWM solar charge controller with IP67 waterproof rating and LCD display. It protects batteries from overcharging and prevents reverse current flow at night. Featuring 5-stage charging technology, it extends battery life and is compatible with various battery types including AGM, Gel, WET, Calcium Lead acid, LTO, and LiFePO4 lithium batteries.

Key Features

IP65 Waterproof Design

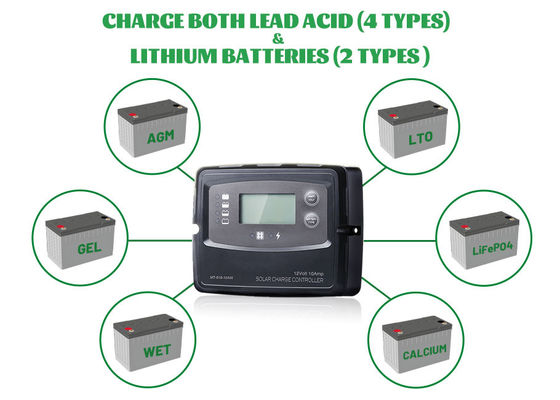

Battery Compatibility

AGM batteries
Gel batteries
WET batteries
Calcium Lead acid batteries
LTO lithium batteries
LiFePO4 lithium batteries

Compact Design

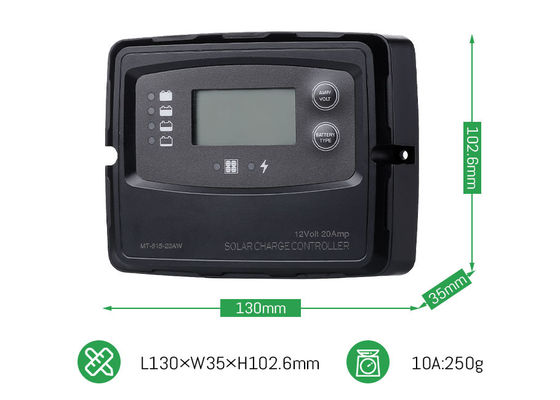

Lightweight design at only 250g with dimensions of 130×102×35mm

Technical Specifications

Item No.	MT515-10A
Rated Current	10A
Max. Solar Power Input	190W
Nominal Solar Input Voltage	15~22V DC
Max. Solar Input Voltage	25V DC
Lowest Operation Voltage	9V DC
Charging Stage	5 Stage Charging (Soft Start-Bulk-Absorption-Equalization-Float)
Battery Type	6 Types (AGM, GEL, WET, Calcium, LTO & LiFePO4)
Min. Battery voltage	3V DC
Protection	Over Charge, Input & Output Reverse Polarity, Short Circuit, Over temperature
IP Rating	IP65
Mounting method	Wall mount
Size	130×102×35mm
Weight	250g
Operation Temperature	-25~50℃/-13~122℉
Storage Temperature	-40~85℃/-40~185℉

LCD + LED Display
