| Brand Name: | Melin Sunergy |
| Model Number: | MT518-40A |
| MOQ: | 100 |
| Payment Terms: | TT ,West Union |
| Supply Ability: | 5000pcs per month |

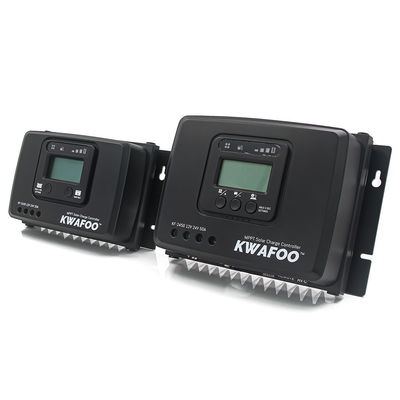

LCD Display 5 Stage 12V 24V Solar Voltage Regulator 40A MPPT 100V Max Input Voltage
The solar voltage regulator is designed to work with a variety of battery types, including AGM, GEL, WET, Calcium, Lead Crystal, LTO, LCO, LFP, and Customs. This versatility makes it an ideal choice for those who want to use their solar power system for a variety of applications.
The RV Solar Charge Controller is also built to last. Its rugged construction and IP43 rating make it resistant to dust and water, ensuring that it will withstand the toughest conditions. The product is also compact, with dimensions of 195X130X70mm, making it easy to install and use.
In summary, the RV Solar Charge Controller is a top-of-the-line product that offers excellent performance and versatility. Its MPPT regulator 40a and solar voltage regulator make it ideal for a wide range of solar power systems, while its rugged construction and IP43 rating ensure that it will last for years to come.
| Product Name | MPPT Solar Charge Controller 40A |
| Product Type | Intelligent MPPT solar controller |
| Charging Stage | 5 Stage |
| Rated Current | 40A |
| Maximum Input PV Power |
580W @ 12V system , 1160W @24V system |
| System Voltage | 12V/24V Auto working |
| Maximum Input Voltage | 100V Voc |
| MPPT Tracking Efficiency | 99.5% |
| Charging conversion efficiency | 98% |
| Suitable Battery Type |
Lead Acid Batteries : AGM, GEL, WET, Calcium,Lead Crystal Lithium Batteries : LiFePO4, LTO, LCO Customs setting |
| Display | LCD+ Fashion LED display |
| BMS Wake Up | Yes |
| Bluetooth | Included |
| IP Level | IP43 |
| Size | 195X130X70mm |
| Weight | 1090g |
| Warranty | 2 Years |
The primary applications of this MPPT solar charge controller kit is in RVs and other mobile homes. With the high MPPT Tracking Efficency and high conversion efficiency , compact size , the KWAFOO MPPT 40A solar voltage regulator is perfect for use in such vehicles, with 40Amp rate , Max. can work with 580W solar panel in 12V system and 1160W solar panel in 24V system , give sufficient support in solar panel size for the vehicles .
Another great use for this 40 amp MPPT solar charge controller is in off-grid solar power systems. Whether you're powering a cabin in the woods or a remote research station, this device will ensure that your solar panels are delivering the maximum amount of power possible. With a maximum input voltage of 100V and a maximum PV power of 580W/12V or 1160W/24V, this charge controller is capable of handling a wide range of different solar panel configurations.
Overall, the Melin Sunergy KWAFOO 40Amp MPPT Solar Charge Controller is an excellent choice for anyone looking for a high-quality, reliable, and efficient solar charge controller. 9 types of battery setting make it capable working with any type of batteries and IP43 Splash proof make the controller suits for working any any enivornment and weather condition .
