| Brand Name: | Melin Sunergy |
| Model Number: | MT515 |
| MOQ: | 100 |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 5000pcs per month |

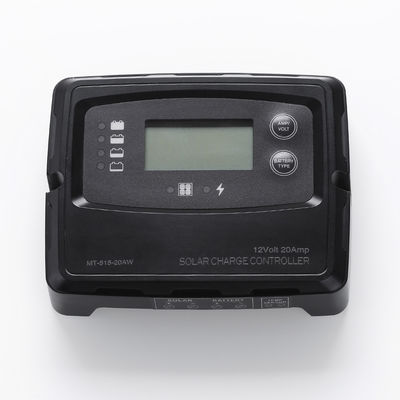

Black LCD LED Solar Charge Controller 12V 24V IP67 Protection Max. PV Power 760W 24V 380W 12V
The Digital Solar Charge Controller is equipped with a range of protection features to ensure that your batteries are safe and secure. It has overcharge protection, which prevents the batteries from being overcharged and damaged. Additionally, it has short circuit protection, which cuts off the charge if a short circuit occurs. The reverse polarity protection ensures that the charge controller is connected correctly to the battery and solar panel.
The Digital Solar Charge Controller is a PWM controller, which stands for Pulse Width Modulation. PWM controllers are known for their high efficiency and accurate regulation of charge. The controller uses a series of pulses to maintain the battery voltage at a safe and stable level. This results in a more efficient and effective charging process, which can extend the life of your batteries.
The Digital Solar Charge Controller has a compact and durable design, with dimensions of 102X130X27mm. It is built to withstand harsh environmental conditions and is suitable for use in a variety of applications, including off-grid solar systems, RVs, boats, and more. The controller is easy to install and comes with all the necessary hardware and instructions.
One of the unique features of the Digital Solar Charge Controller is its temperature compensation. This feature adjusts the charging voltage based on the temperature of the batteries, ensuring that they are charged optimally regardless of the ambient temperature. This ensures that your batteries last longer and perform better over time.
In conclusion, the Digital Solar Charge Controller is a top-of-the-line lifepo4 solar charge controller that offers advanced features and reliable performance. With its intelligent PWM technology, robust construction, and temperature compensation, this controller is the perfect choice for managing your solar power system. Whether you are looking to power your off-grid cabin or your RV, this controller is a cost-effective and efficient solution that will meet all your needs.
| Item No. | MT515-20A |
| Rated Current | 20A |
| Max. Solar Power Input | 380W @ 12V system |
| Norminal Solar Input Voltage | 15~44V DC |
| Max. Solar Input Voltage | 50V DC |
| Lowest Operation Voltage | 9V DC |
| Charging Stage | 5 Stage Charging (Soft Start-Bulk-Absorption-Equalization-Float) |
| Battery Type | 6 Types of Battery (AGM, GEL, WET ,Calciium,LTO & LiFePO4) |
| Min. Battery voltage | 3V DC |
| Protection | Over Charge , Input & Output Reverse Polarity , Short Circuit , Over temperature, |
| IP Rate | IP67 |
| Mounting method | Wall mount |
| Size | 130X102X35mm |
| Weight | 250g |
| Operation Temperature | -25~50℃/-13~122℉ |
| Storage Temperature | -40~85℃/-40~185℉ |
Manufactured in China, the MT515 is a top-quality product that has been certified by CE, FCC, and UKCA. This certification ensures that the product meets the highest standards of quality and safety and is suitable for use in a variety of different settings.
The MT515 Digital Solar Charge Controller is an essential product for anyone looking to charge their solar power system efficiently and safely. With a minimum order quantity of 100, this product is perfect for businesses and organizations that require numerous units for large projects.
The MT515 is designed with protection in mind, featuring overcharge protection, short circuit protection, and reverse polarity protection. This level of protection ensures that your solar power system remains safe, even in the event of unforeseen circumstances.
With an IP level of IP67, the MT515 is resistant to water and dust, making it perfect for use in outdoor settings. This level of protection ensures that the product remains functional and safe, even in harsh conditions.
The MT515 also features temperature compensation, which allows the product to adjust the charging voltage according to the temperature of the battery, ensuring optimal charging performance. With a system voltage of 12V and 24V, this product is perfect for a range of different solar power systems.
The charging stage of the MT515 is also a noteworthy feature. With 5 stage charging, this product is designed to ensure that your battery is charged quickly and efficiently, maximizing the lifespan of your solar power system.
In conclusion, the Melin Sunergy MT515 Digital Solar Charge Controller is a top-quality charge controller for solar power systems. With its intelligent PWM design, protection features, and temperature compensation, this product is perfect for a wide range of applications and scenarios. So why wait? Order your MT515 today and ensure that your solar power system remains safe and efficient for years to come.
Our technical support team is available to answer any questions regarding the installation, operation, and maintenance of the Digital Solar Charge Controller. We also provide services such as product repair and replacement, firmware updates, and customization options to meet specific customer needs.
Q: What is the brand name of the digital solar charge controller?
A: The brand name of the digital solar charge controller is Melin Sunergy.
Q: What is the model number of the digital solar charge controller?
A: The model number of the digital solar charge controller is MT515-20A.
Q: Where is the digital solar charge controller manufactured?
A: The digital solar charge controller is manufactured in China.
Q: What kind of battery does this controller can charge?
A: The MT515 digital solar charge controller can charge 12V or 24V AGM ,GEL ,WET ,Calcium ,LiFePO4 and LTO batteries.
Q: What is the minimum order quantity for the digital solar charge controller?
A: The minimum order quantity for the digital solar charge controller is 100.
