20A Ce Solar Charge Controller

Product Description:

This 20 amp PWM solar charge controller features a user-friendly interface that allows you to easily monitor and adjust your system's performance. The controller is compatible with a variety of battery types, including AGM, gel, WET ,Calcium and even the latest LifePO4 batteries, ensuring that you get the most out of your solar power system.

The Digital Solar Charge Controller is built to last, with a 2-year warranty that guarantees its reliability and performance. With a maximum PV power of 760W at 24V and 380W at 12V, this controller is built to handle the demands of even the most power-hungry applications.

Whether you're looking to power your home, RV, or other off-grid applications, the Digital Solar Charge Controller is the perfect solution. With its user-friendly interface, compatibility with a variety of battery types, and 20 amp PWM solar charge controller, you can rest assured that you're getting the most out of your solar power system.

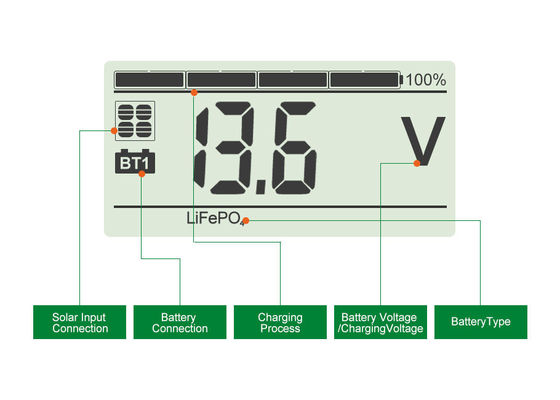

This PWM controller is an IP67 water proof controller make it suitable for using in many different environment such like on RV close to beach or on a Marine . It’s digital LCD plus LED display , customer will can check the real time charging statues very easy .

This 20a pwm solar controller are coming with a BSM wake up function when charging a lithium battery . When the lithium battery voltage low , BMS may protect your battery make it can not been charged . With the BMS wake up function , the controller will can easy wake up the BMS and let the battery can be charged at once .

Features:

• Battery Type: AGM, GEL, WET, Calcium, LiFePO4, LTO
• Rated Current: 20A
• Max. PV Power: 760W @ 24V, 380W @ 12V
• Display: LCD+LED
• Warranty: 2 Years
• Built in regulator to prevent your battery from being overcharged. Overcharging occurs when the charge voltage is unregulated. This can result in premature battery failure
• 12V 24V system auto working
• 5 stage charging technology to prolong the battery life .

This intelligent PWM solar charge controller is designed to handle up to 20 amp of charging current and supports AGM, GEL, WET, Calcium, LiFePO4, LTO batteries. It can handle a maximum PV power of 760W @ 24V or 380W @ 12V. The controller comes with an LCD+LED display and is backed by a 2-year warranty.

Technical Parameters:

Applications:

The MT515-20A PWM charge controller is designed with an LCD+LED display which helps you to monitor the system status easily. The maximum input voltage of 50V and IP67 level rating ensures the controller is protected from environmental factors such as water and dust.

The MT515 is optimized for a range of battery types including AGM, GEL, WET, Calcium, LiFePO4, and LTO. This allows you to choose the battery type that best suits your needs. The maximum PV power of 760W @ 24V and 380W @ 12V makes this 20 amp PWM solar charge controller a perfect fit for a range of small to medium-sized solar power systems.

With the features of 5 stage charging , 6 types of battery setting , BMS wake up function for Lithium battery , IP67 Water proof level and Temperature compensation function , The MT515-20A PWM charge controller could be is ideal for use in a variety of applications such as:

1. Home solar power stations

2. Solar Power systems for RV

3. Solar Charging system on Marine and boat

4. Integration parts on portable solar panels for camping charge

Overall, the Melin Sunergy MT515 is a reliable and efficient solar charge controller that is perfect for a range of solar power applications. Whether you're looking for a LiFePO4 solar charge controller or a 20 amp PWM solar charge controller, the MT515 has got you covered.

Support and Services:

The Digital Solar Charge Controller is designed to regulate the voltage and current from your solar panels to your battery bank. It features a digital display that shows real-time information about the charging status of your batteries, as well as a range of protection features to ensure the safety and longevity of your system. Our product technical support and services include:

- Assistance with installation and setup

- Troubleshooting common issues

- Guidance on maintenance and upkeep

- Warranty and repair services

- Customer service support for any inquiries or concerns

FAQ:

Here are some frequently asked questions and answers about the Melin Sunergy MT515 Digital Solar Charge Controller:

Q: What is the maximum solar panel input for the MT515?

A: The MT515 can handle up to 50V DC input voltage from solar panels and in 12V system Max. work with 380W solar panel ,

     in 24V system Max. work with 760W solar panel .

Q: What battery types are compatible with the MT515?

A: The MT515 is compatible with both lead acid and lithium batteries include : AGM ,GEL ,WET ,Calcium , LiFePO4 and LTO battery.

Q: What is the maximum charging current for the MT515?

A: The MT515 can charge at a maximum rate of 20 amps.

Q: Is the MT515 waterproof?

A: The MT515 is designed to be IP67 Water proof .

Q: What certifications does the MT515 have?

A: The MT515 has CE, FCC, and UKCA certifications.

Q: What is the minimum order quantity for the MT515?

A: The minimum order quantity for the MT515 is 100 units.
