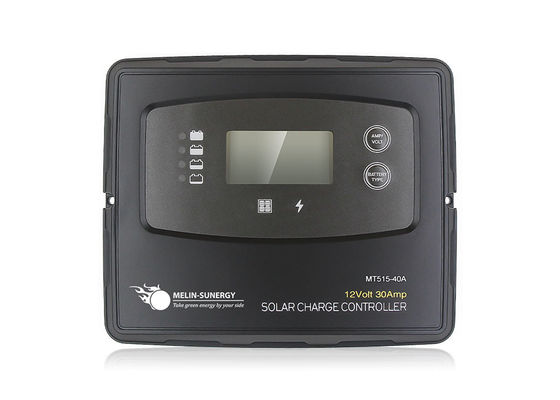

40A 12V Digital Smart PWM Solar Charge Controller For Both Lead Acid And Lithium Battery
【Introduction】
MT515-40A pwm solar charge controller is a Flush mount solar charge controller with digital LCD display . It can protect the battery
from over charging and block the reverse charging from battery to solar panel at night time . With 5 stage charging technology

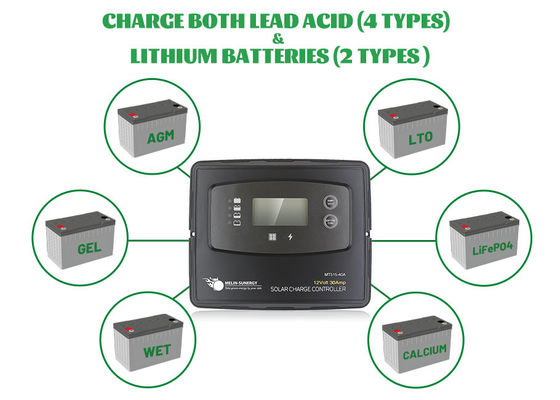

, can help to maintain the battery with longer life . Suits for AGM , Gel , WET , Calcium Lead acid batteries , LTO & LiFePO4 lithium battery on Marine ,Boat and Caravan etc..
【Features】
【Suits for lead acid batteries AGM /GEL/WET and Lithium battery LiFePO4】
【Compact small size and Weight 460g only】
【Specification 】
| Item No. | MT515-40A |
| Rated Current | 40A |
| Max. Solar Power Input | 760W |
| Norminal Solar Input Voltage | 15~22V DC |
| Max. Solar Input Voltage | 25V DC |
| Lowest Operation Voltage | 9V DC |
| Charging Stage | 5 Stage Charging (Soft Start-Bulk-Absorption-Equalization-Float) |
| Battery Type | 6 Types of Battery (AGM, GEL, WET ,Calciium,LTO & LiFePO4) |
| Min. Battery voltage | 3V DC |
| Protection | Over Charge , Input & Output Reverse Polarity , Short Circuit , Over temperature, |
| IP Rate | IP65 |
| Mounting method | Wall mount |

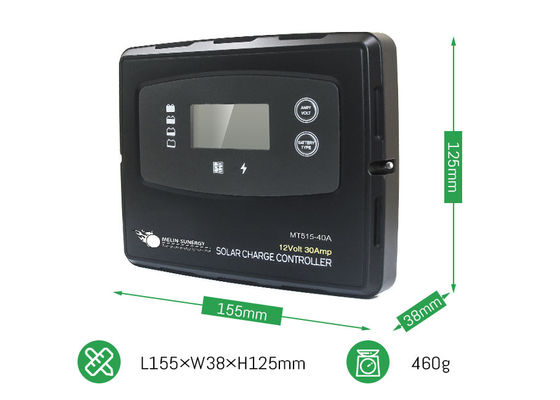

| Size | 155X125X38mm |
| Weight | 460g |
| Operation Temperature | -25~50℃/-13~122℉
|
| Storage Temperature | -40~85℃/-40~185℉ |

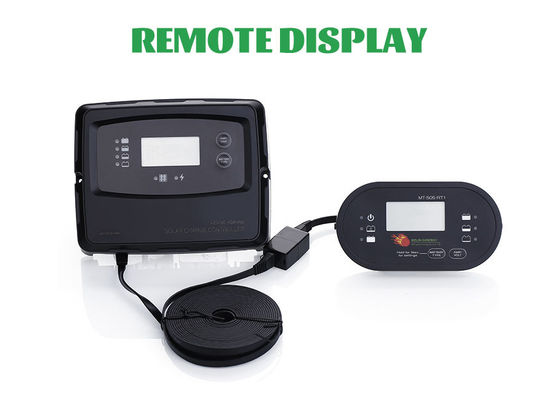

【LCD + LED Display 】
