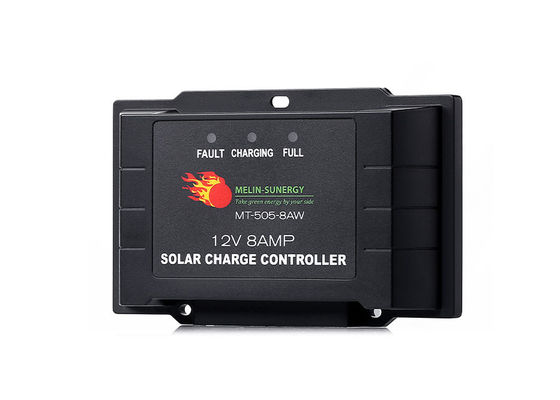

8A 12V Small Size IP65 Water Proof Smart PWM Solar Charge Controller
【Introduction】
MT504 pwm solar charge controller is a IP65 water proof solar charge controller with small size . It can protect the battery
from over charging and block the reverse charging from battery to solar panel at night time . With 5 stage charging technology
, can help to maintain the battery with longer life . Suits for AGM , Gel , WET ,LiFePO4 lithium battery on Marine ,Boat and Caravan
etc..
【Features】
【IP65 Waterproof】

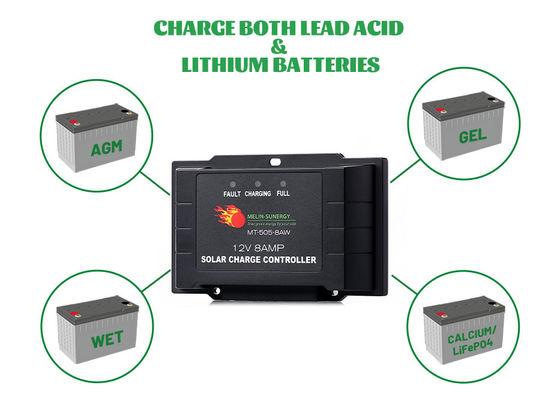

【Suits for lead acid batteries AGM /GEL/WET and Lithium battery LiFePO4】
【Compact small size and really Light Weight 120g only】
【Specification 】
| Item No. | MT504-8A |
| Rated Current | 8A |
| Max. Solar Power Input | 140W |
| Norminal Solar Input Voltage | 15~22V DC |
| Max. Solar Input Voltage | 25V DC |
| Lowest Operation Voltage | 9V DC |
| Charging Stage | 5 Stage Charging (Soft Start-Bulk-Absorption-Equalization-Float) |
| Battery Type | 4 Types of Battery (AGM, GEL, WET , LiFePO4 or Calciium) |
| Min. Battery voltage | 3V DC |
| Protection | Over Charge , Input & Output Reverse Polarity , Short Circuit , Over temperature, |
| IP Rate | IP65 |
| Mounting method | Wall mount |

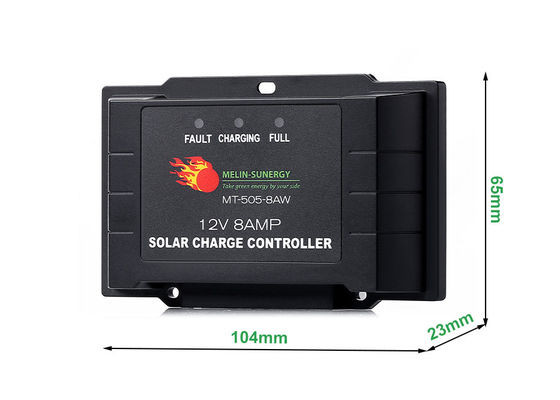

| Size | 104X65X23mm |
| Weight | 120g |
| Operation Temperature | -25~50℃/-13~122℉
|
| Storage Temperature | -40~85℃/-40~185℉ |

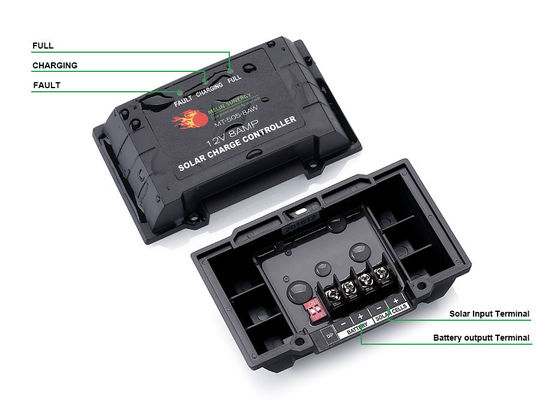

【LED indicator and Wire Terminal 】
